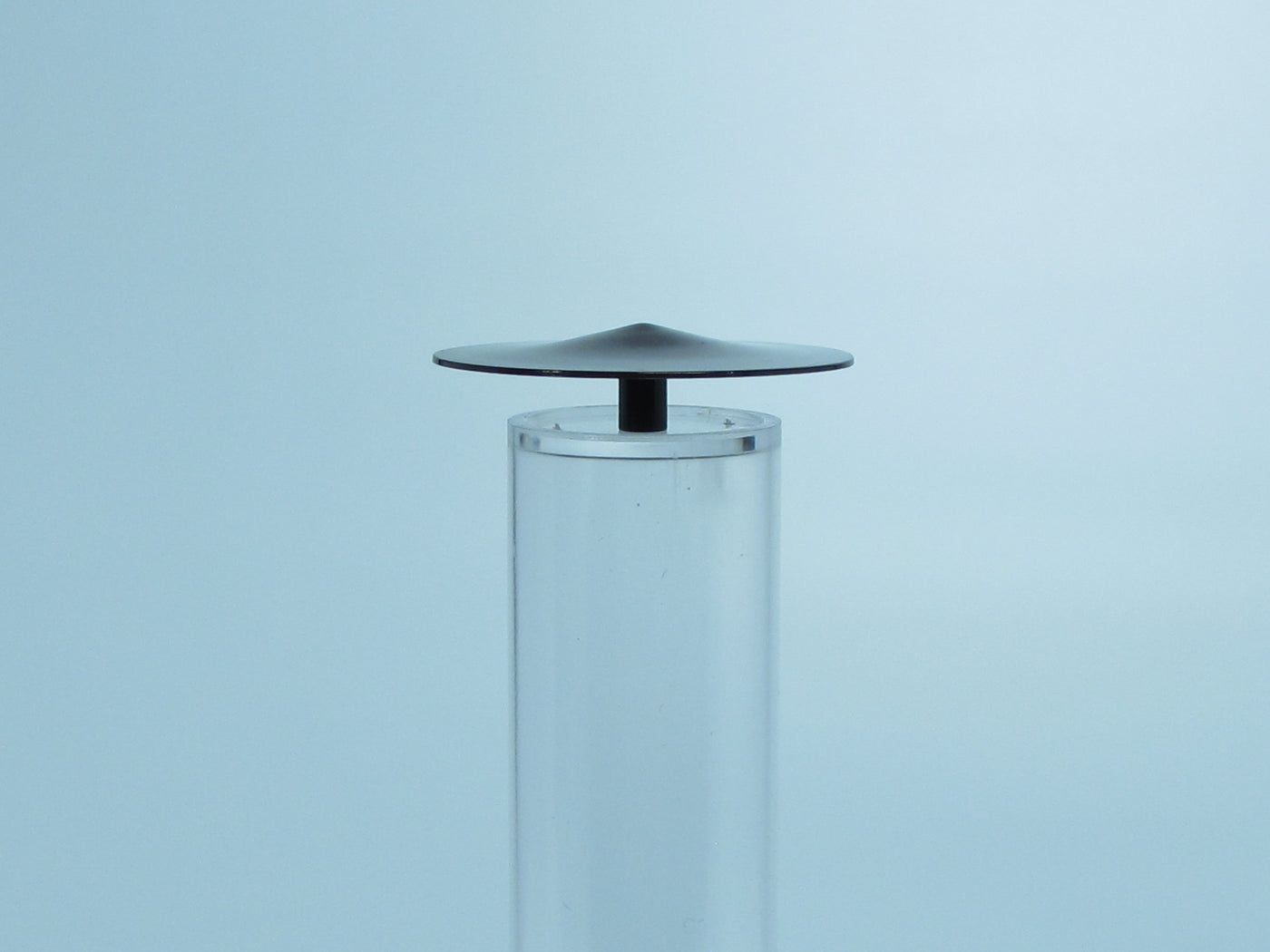

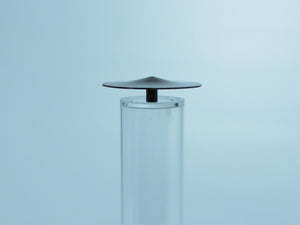

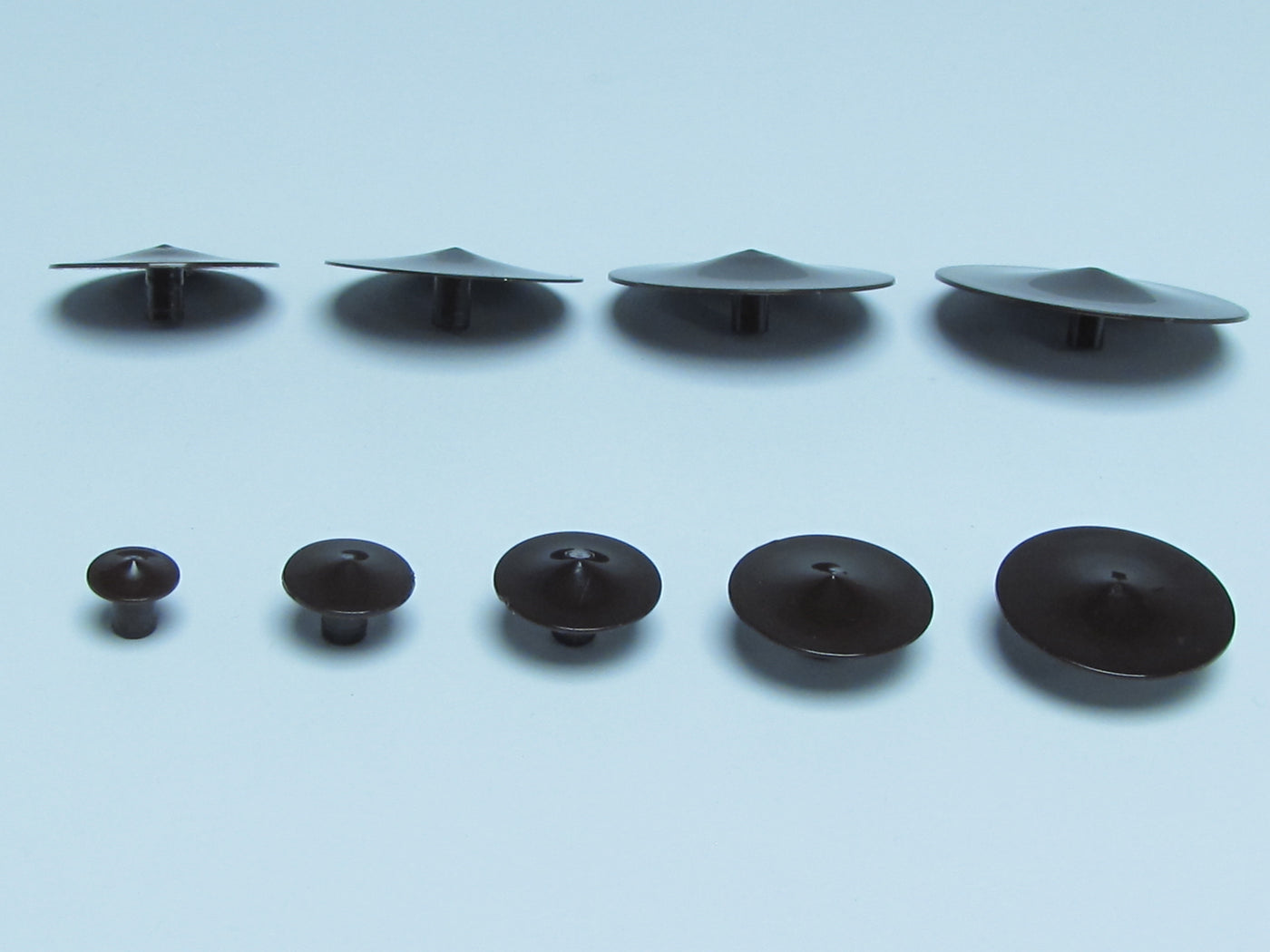

B56R Style Cone Resonators

This is the resonator used on the popular B56 and B62 Cone Style Resonator Pads. Provides 360° airflow management and sound reflection to direct the sound and air out from under the pad instead of bouncing it back into the sax, greatly improving player’s response and performance.

Available only in the color BROWN.
SIZE       O.D.   Fits MM    Fits 32nd    Pad Sizes
B56R 1  .312”     (7.9mm)     20-28          16-22.5
B56R 2  .445”     (11.3mm)   29-33          23-26.5
B56R 3  .570”     (14.5mm)   34-38          27-30
B56R 4  .700”     (17.8mm)   39-43          30.5-34.5
B56R 5  .820”     (20.8mm)   44-48          35-38.5
B56R 7  .950”     (24.1mm)   49-54          39-43
B56R 8  1.075”   (27.3mm)   55-61          43.5-48.5
B56R 10 1.200” (30.5mm)   62-71          49-56.5
B56R 11 1.325” (33.7mm)   72-88           57-70

ITEM NUMBER DESCRIPTION
B56RA Alto Sax Set
B56RT Tenor Sax Set
B56RB Baritone Sax Set
**HEAT STAKING TOOL REQUIRED**
