Back to Basics-Pad Specs

Pad Specs



How much do you want to know?
It's popular now to know pad thicknesses other than; Thin, Med. Thin, Med., Med. Thick, or Thick.
So, here is the data on pad thicknesses in both metric and English terms.
No secrets here, just print this out, copy it down or remember where it's at.

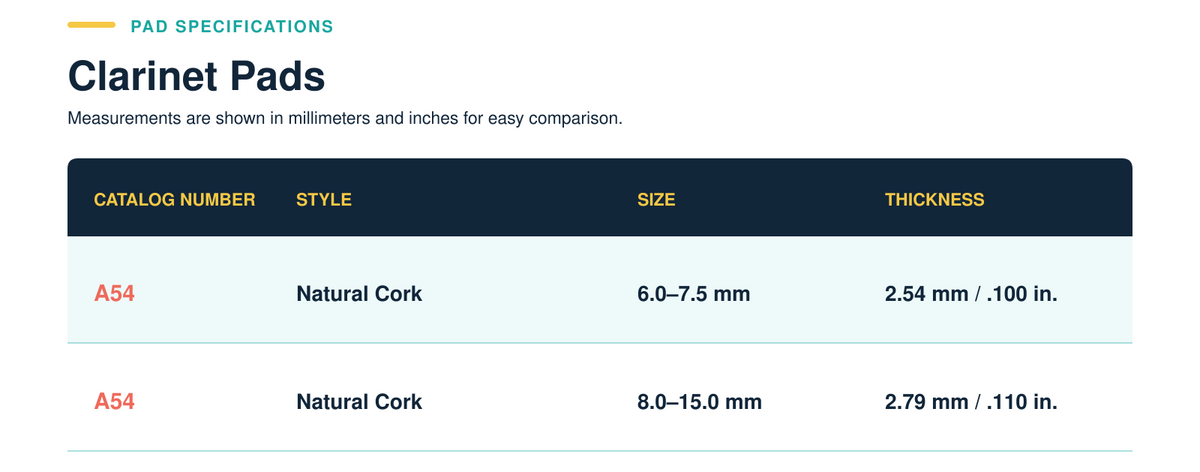

~Clarinet Pads~



Cat #





Style





Size





Thickness





A54





Natural Cork





6.0 - 7.5mm





2.54mm / .100"





8.0 - 15.0mm





2.79mm / .110"





B9





Norbeck Synthetic





7.0 - 20.0mm





2.54mm / .100"





B9A





Norbeck Synthetic





9.0 - 20.0mm





3.55mm / .140"

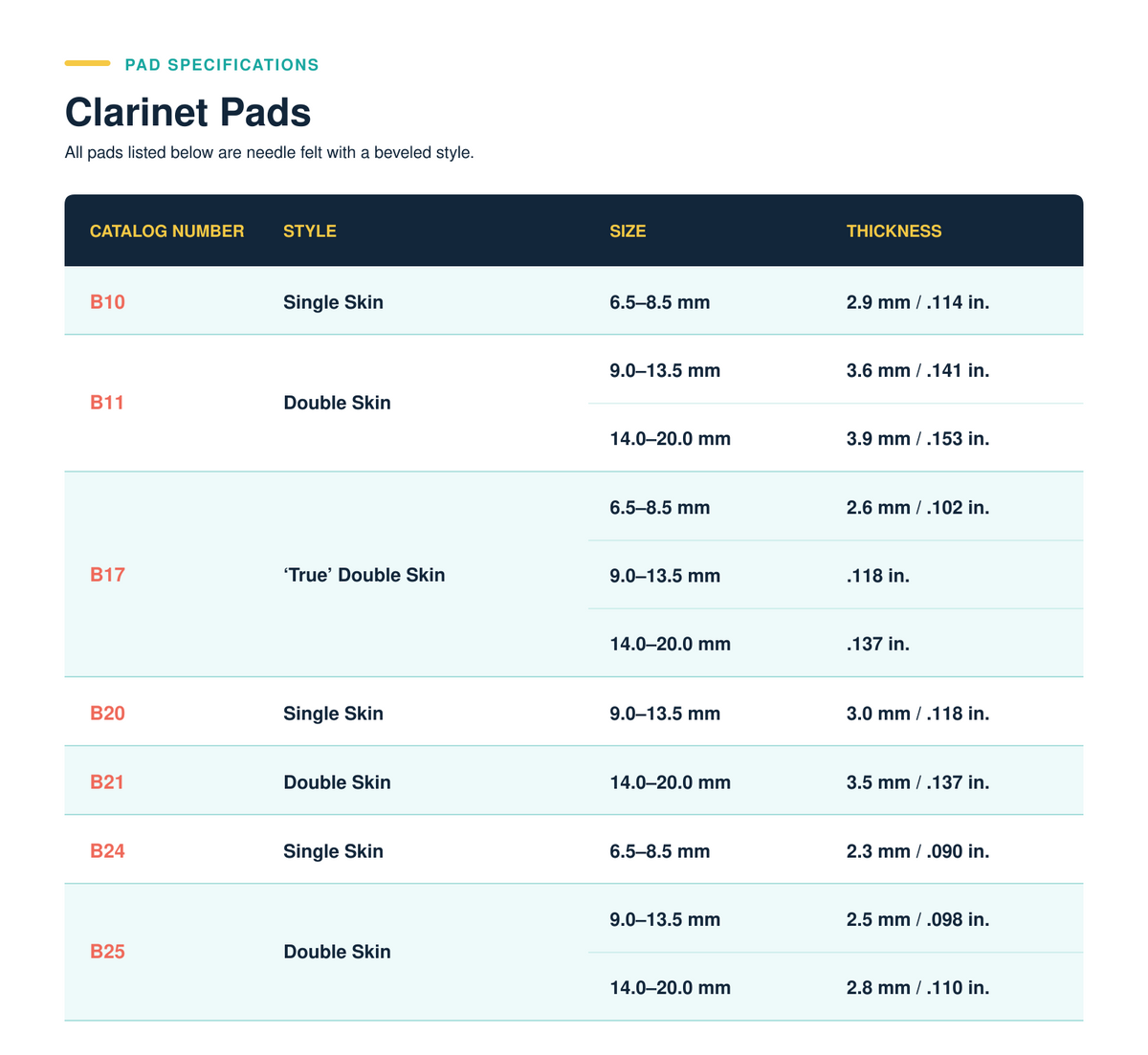

~All Clarinet pads BELOW are of needle felt and beveled style~



B10





Single Skin





6.5 - 8.5mm





2.9mm / .114"





B11





Double Skin





9.0 - 13.5mm





3.6mm / .141"





14.0 - 20.0mm





3.9mm / .153"





B17





'True' Double Skin





6.5 - 8.5mm

9-13.5mm

14-20mm





2.6mm / .102"

.118

.137





B20





Single Skin





9.0 - 13.5mm





3.0mm / .118"





B21





Double Skin





14.0 - 20.0mm





3.5mm / .137"





B24





Single Skin





6.5 - 8.5mm





2.3mm / .090"





B25





Double Skin





9.0 - 13.5mm





2.5mm / .098"





14.0 - 20.0mm





2.8mm / .110"

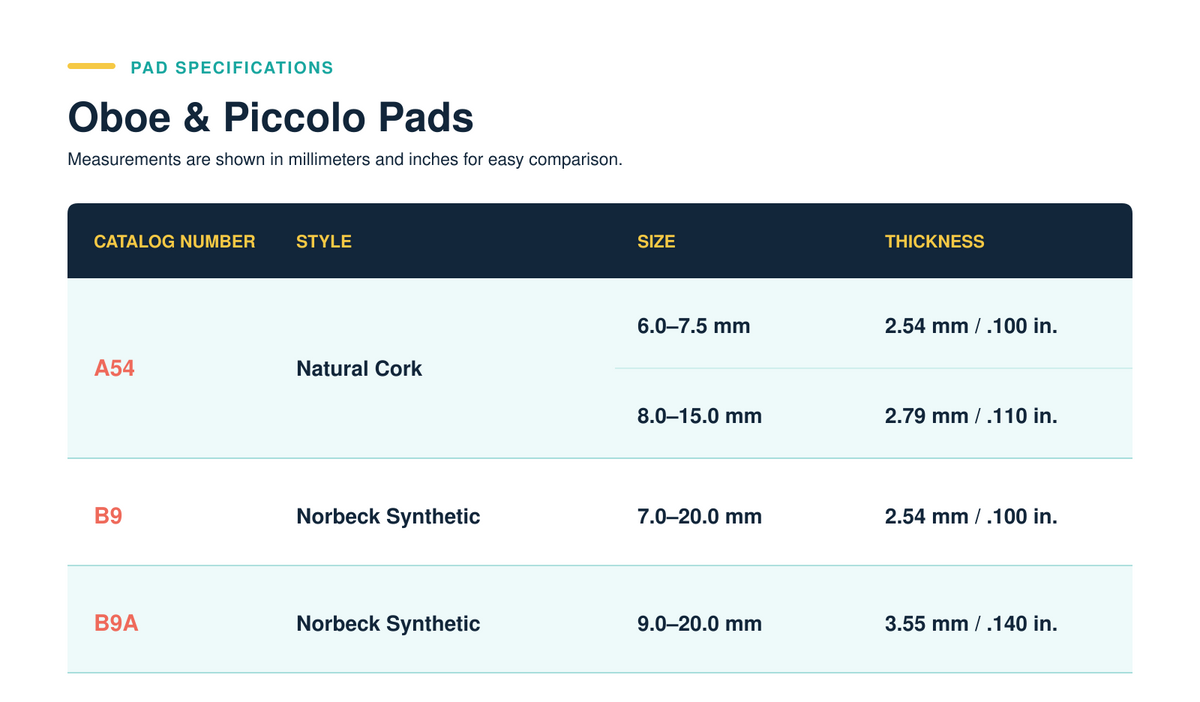

~Oboe & Piccolo Pads~



A54





Natural Cork





6.0 - 7.5mm





2.54mm / .100"





8.0 - 15.0mm





2.79mm / .110"





B9





Norbeck Synthetic





7.0 - 20.0mm





2.54mm / .100"





B9A





Norbeck Synthetic





9.0 - 20.0mm





3.55mm / .140"











Norbeck's DO NOT work on metal surfaces!
(Like metal vents and metal Piccolo bodies)
~Piccolo & Oboe pads below are of woven felt and NOT beveled~
(If you want to use a beveled pad, you can use the B25, .098" thin clarinet pad.)



B35, B37





Double Skin





6.5 - 15.5mm





2.3mm / .090"





B28





Yellow Double Skin





(same as above)

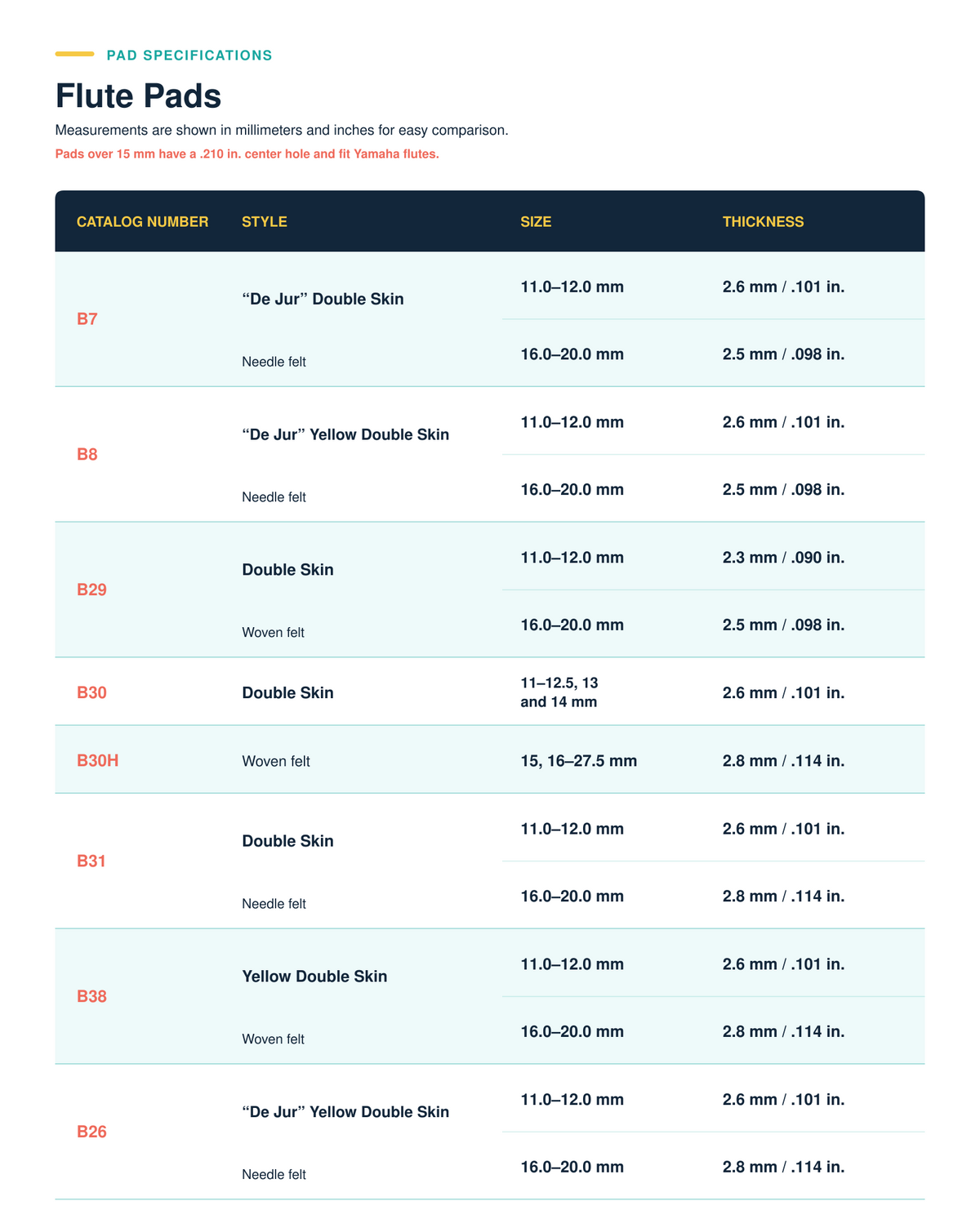

~Flute Pads~



{Note: All flute pads over 15mm have a 5.5mm center hole (.210") and will fit a Yamaha}





B7





~De'Jur~ Double Skin





11.0 - 12.0mm





2.6mm / .101"





(needle felt)





16.0 - 20.0mm





2.5mm / .098"





B8





~ De'Jur~ Yellow Double Skin





11.0 - 12.0mm





2.6mm / .101"





(needle felt)





16.0 - 20.0mm





2.5mm / .098"





B29





Double Skin





11.0 - 12.0mm





2.3mm / .090"





(woven felt)





16.0 - 20.0mm





2.5mm / .098"





B30





Double Skin





11 - 12.5, 13, 14mm





2.6mm / .101"





B30H





(woven felt)





15, 16 - 27.5mm





2.9mm / .114"





B31





Double Skin





11.0 - 12.0mm





2.6mm / .101"





(needle felt)





16.0 - 20.0mm





2.9mm / .114"





B38





Yellow Double Skin





11.0 - 12.0mm





2.6mm / .101"





(woven felt)





16.0 - 20.0mm





2.9mm /.114"





B26





~ De'Jur~ Yellow Double Skin





11.0 - 12.0mm





2.6mm / .101"





(needle felt)





16.0 - 20.0mm





2.9mm / .114"

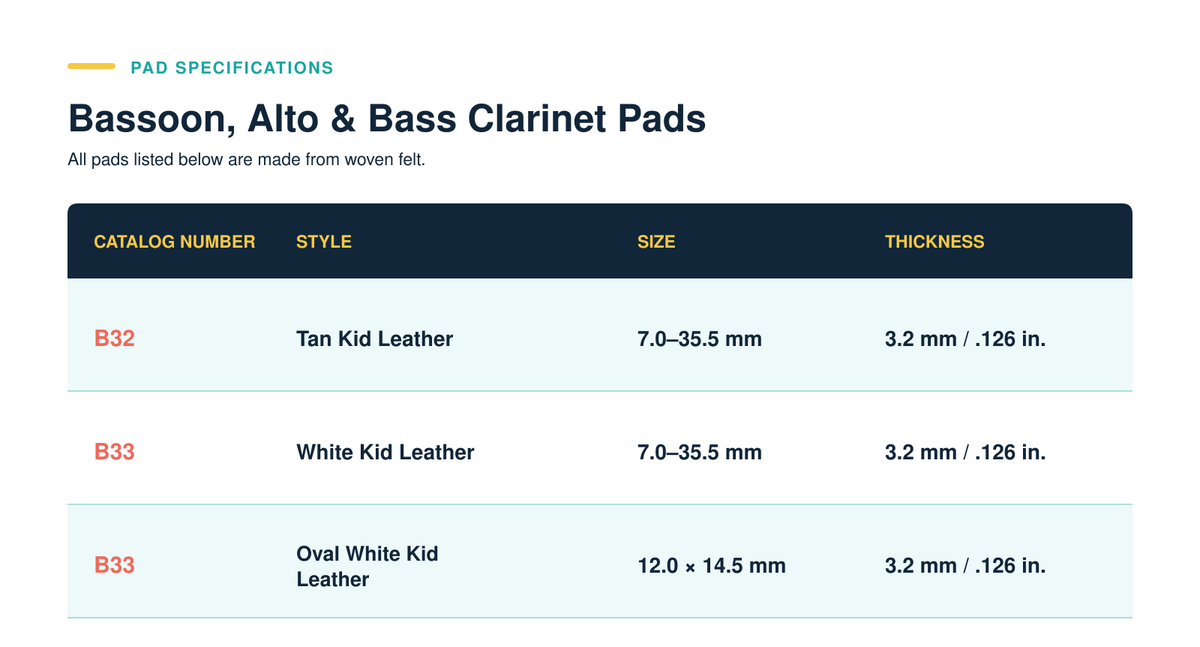

~Bassoon, Alto & Bass Clarinet~



~These are ALL woven felt~





B32





Tan Kid Leather





7.0 - 35.5mm





3.2mm / .126"





B33





White Kid Leather





7.0 - 35.5mm





3.2mm / .126"





B33





Oval White Kid Leather





12.0mm X 14.5mm





3.2mm / .126"











~Saxophone Pads~



~ALL Saxophone pads are of woven felt~
(Resonators start at 15mm or 20/32", unless noted)
('Rivets only' on 20-25/32" or 16-20mm, in pad type)

B40, B42





7.0 - 11.0mm





4.0mm / .160"





B44, B47





Leather





11.5 - 70.0mm





4.7mm / .185"





B53, B59





 7.0 - 70.0mm



 4.7mm / .185"



B43, B46





7.0 - 1 1.0mm





3.5mm / .140"





B52, B58





Leather





11.5 - 70.0mm





4.0mm / .160"





B56





Cone Leather





20/32" - 88/32"





.185"





B56M





Cone





16mm - 70mm





4.7mm





B62M





Cone Leather





16mm - 70mm





4.0mm/ .160"





B60





Snap-on Leather





10mm - 59mm





as listed various






As you can see, the sax pads are proportional to diameter in a given thickness.





~For exact specifications, see Catalog describing focus pad~
