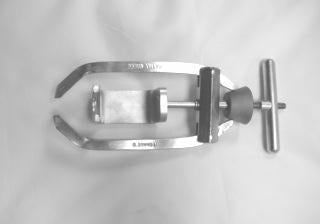

Before positioning the puller, loosen the mechanism by backing off the T-handle.
-

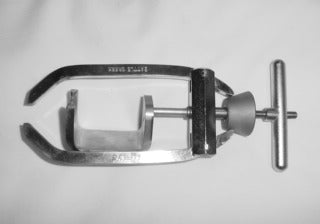

This view shows the cradle and jaws opened and ready to be positioned around the mouthpiece and receiver.
-
The G88 is shown mounted on a Conn 17A with a Getzen mouthpiece. Make sure the cradle and jaws are properly aligned before tightening.
-

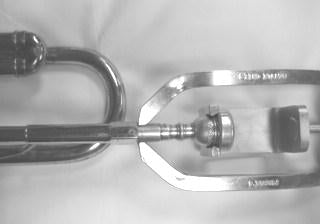

Here, the G88 is positioned on an older Blessing trumpet with a Bach 7C mouthpiece.
-

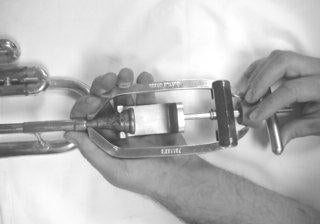

Hold the G88 securely in your weaker hand and turn the T-handle with your stronger hand. Keep the jaws firmly positioned so they do not slide over the receiver while tightening.
-

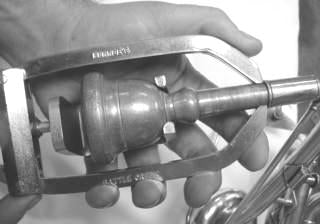

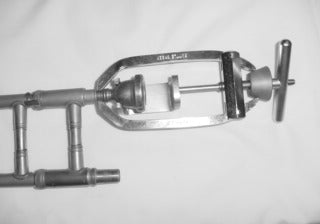

The same secure grip can be used when removing stuck mouthpieces from a trombone slide or tuba. The examples shown include 12H and Bach trombone applications.
-
Place the jaws firmly against the mouthpiece stem so the puller pushes against the receiver correctly. Laying the instrument on a padded bench or table can help.
-

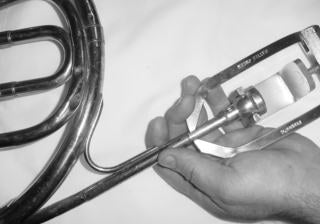

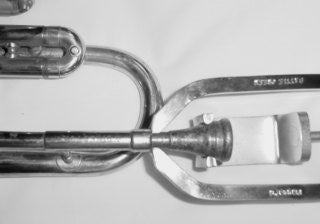

The G88 is shown in use on a Conn 14D French horn and a cornet. Maintain a firm, controlled grip throughout the removal process.
