N28D Ground Valve Sleeve .886-1.400"
N28D Ground Valve Sleeve .886-1.400" - 0.888 is backordered and will ship as soon as it is back in stock.
Tax-exempt customers: Please use the standard checkout instead of express checkout options. During checkout, enter the same email address associated with your approved tax-exempt customer account to ensure your exemption is applied.
Warranty & Returns
Warranty & Returns
Standard tools manufactured by Ferree’s Tools include a one-year limited warranty against defects. Eligible standard products may be returned within 30 days of the invoice date with an approved RMA number. Returns after 30 days may incur a restocking fee, and returns are not accepted after 180 days. Custom-manufactured products cannot be returned.
Delivery and Shipping
Delivery and Shipping
Most in-stock products are prepared within 24 hours and shipped within 48 hours. Free standard shipping is available worldwide, with processing fees of $10 for domestic orders, $20 for Canada and Mexico, and $30 for other international destinations. Chemicals must ship by ground and cannot be shipped overseas. Expedited shipping is available for an additional charge.
N28D Ground Valve Sleeve .886-1.400"
Built for Musicians
Purpose-built tools and supplies designed for accurate, efficient instrument repair.
Description
Description

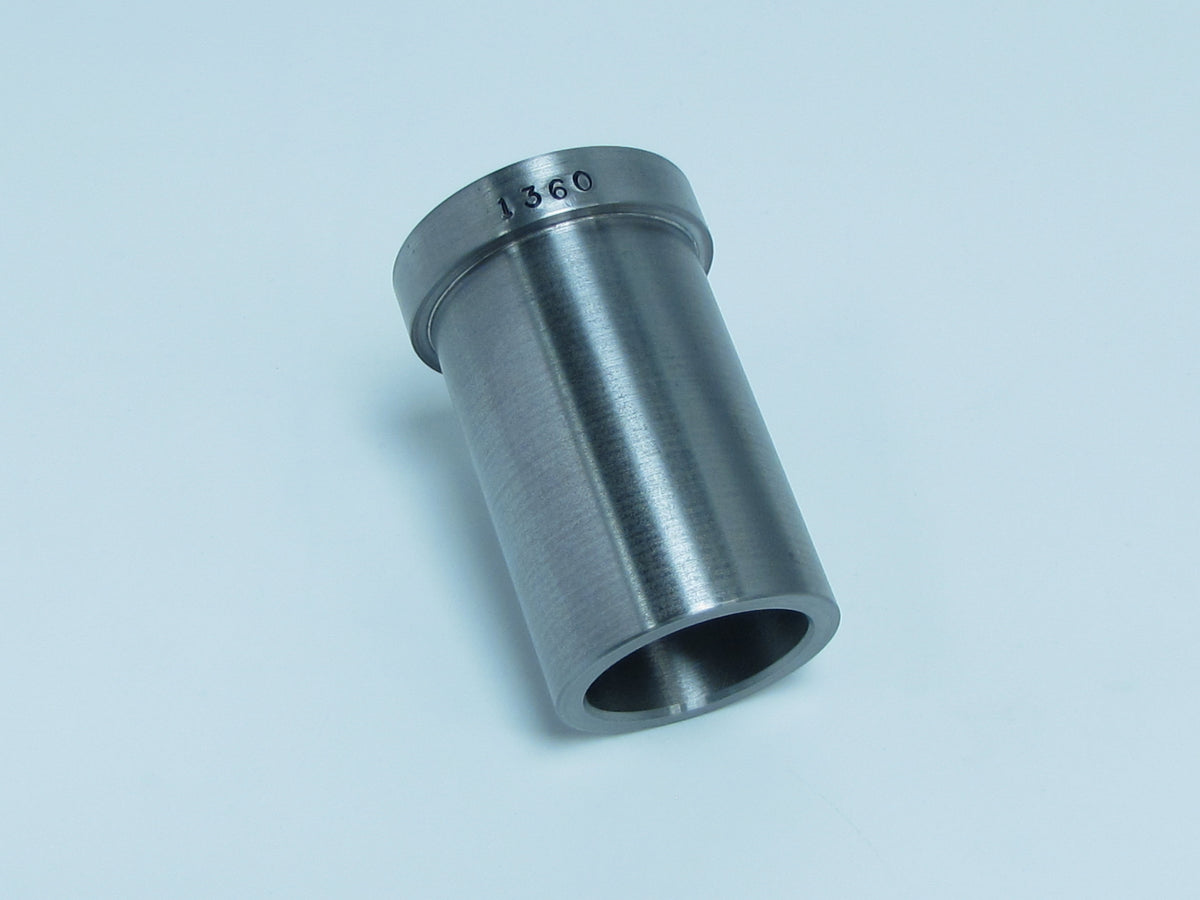

These steel sleeves have a standard length of 3" and are used to straighten bent and out of round pistons. The sleeves have been bored and then honed to the exact sizes used when the valve casings were manufactured. This is a forming die. They are not adjustable.
IF YOU NEED THE SLEEVE SHORTER OR LONGER WE CAN MAKE THAT FOR YOU - CONTACT THE OFFICE!!!
For Sizes Not Listed or Special Sizes Please Enter Desired Size in the Note Section on the Check-out Page.
The recommended procedure for use:
Remove the valve cap, finger button, stem and guide from the piston.

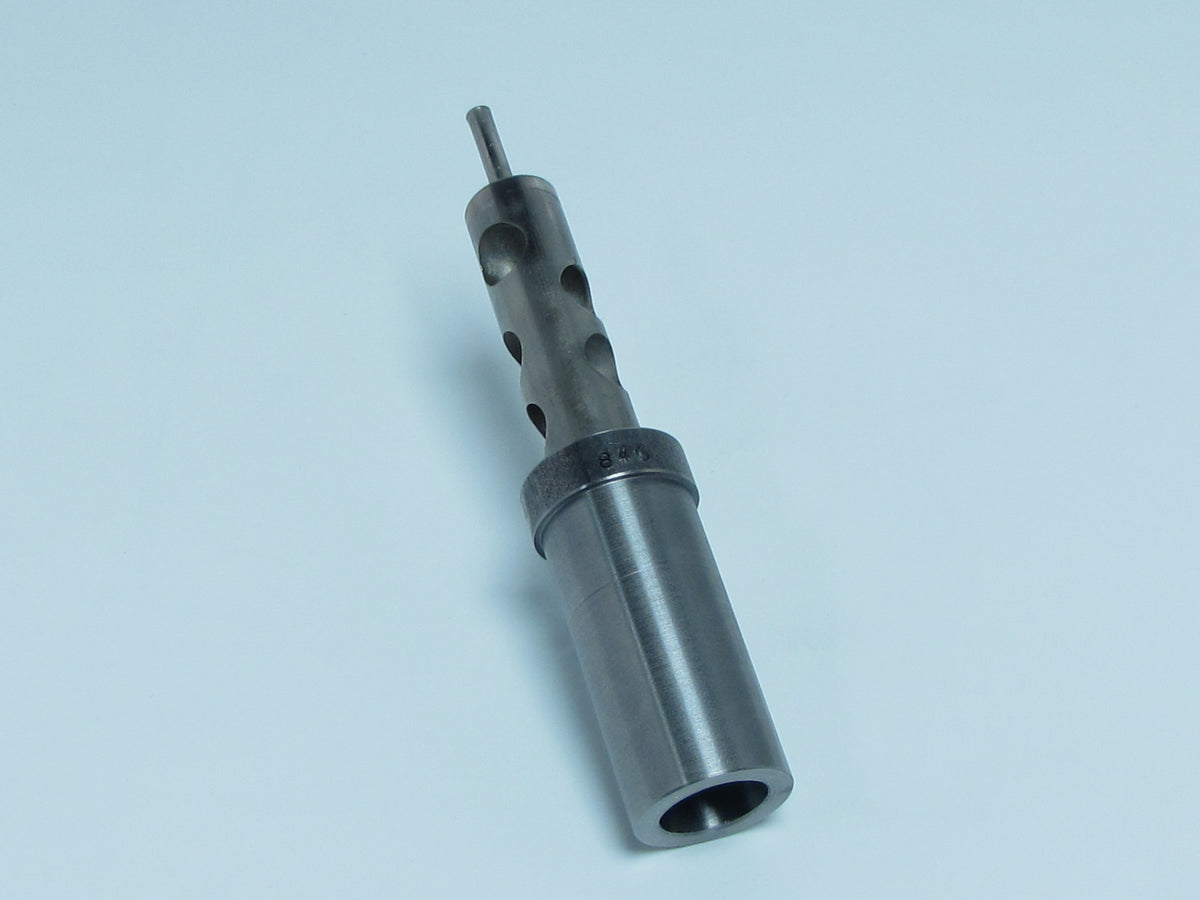

Select the proper diameter sleeve and push the piston all the way in so the main body of the piston is completely covered by the sleeve.
Hold this complete assembly in the palm of your hand.
Use a F5 rawhide or F11 canvas mallet and strike the outside of the steel sleeve many times, rotating the sleeve in your hand as you go, so hammer blows strike the sleeve all the way around.
Continue this procedure until the piston works freely in the sleeve.
SLEEVES ARE NOT ADJUSTABLE ORDER THE EXACT SIZE.
TO ORDER THE CORRECT SIZE
Order by the O.D. of the piston. Example: Yamaha .664 Due to the differences in manufacturing over the years it is highly RECOMMENDED to measure the valve piston.

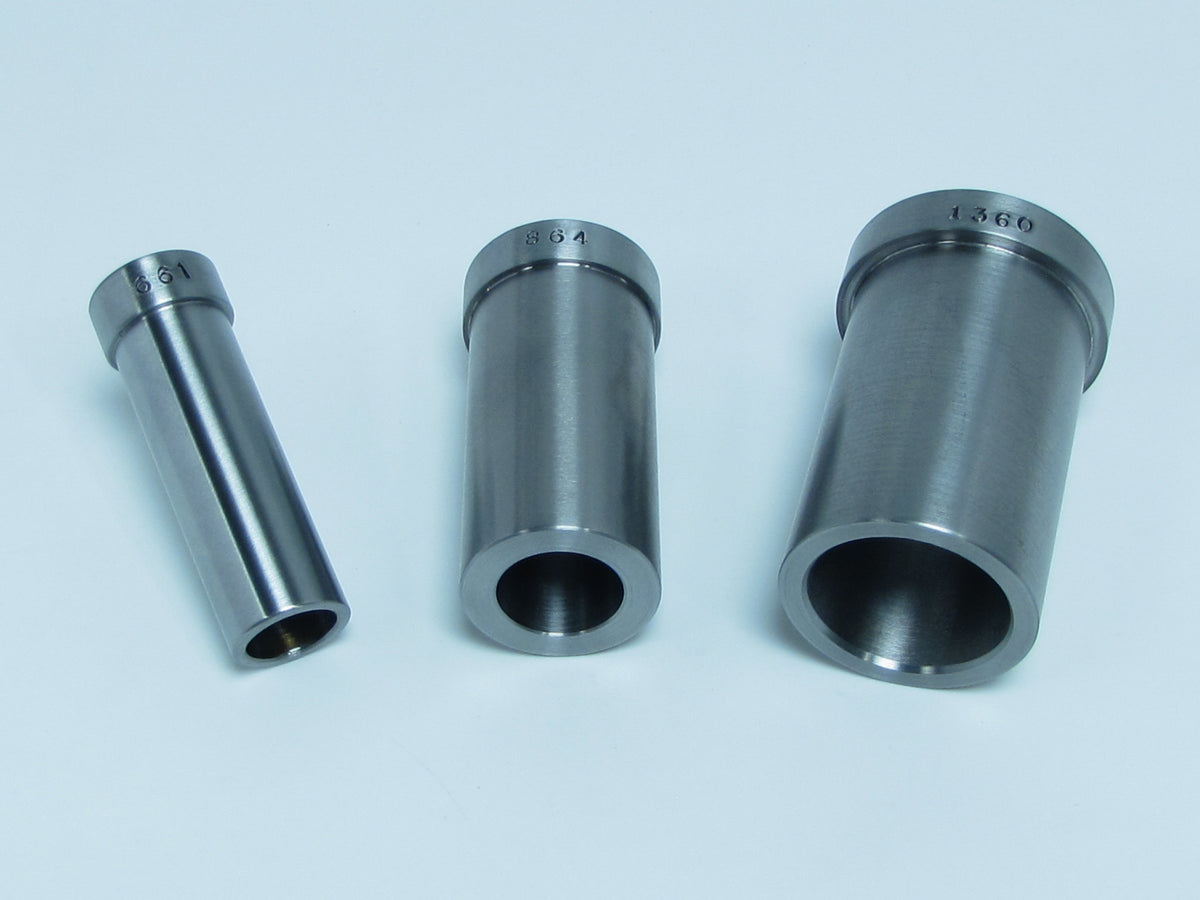

These mandrels are divided into 3 size groups:
(N28A Part # for sizes: .630-.700, N28C:.701-.885, N28D: .888-1.400
N28A For cornet and trumpet
N28C For alto horn, valve trombone, baritone and euphonium
N28D For sousaphone, Tuba, Bari
For Sizes Not Listed or Special Sizes Please Enter Desired Size in the Note Section on the Check-out Page.
